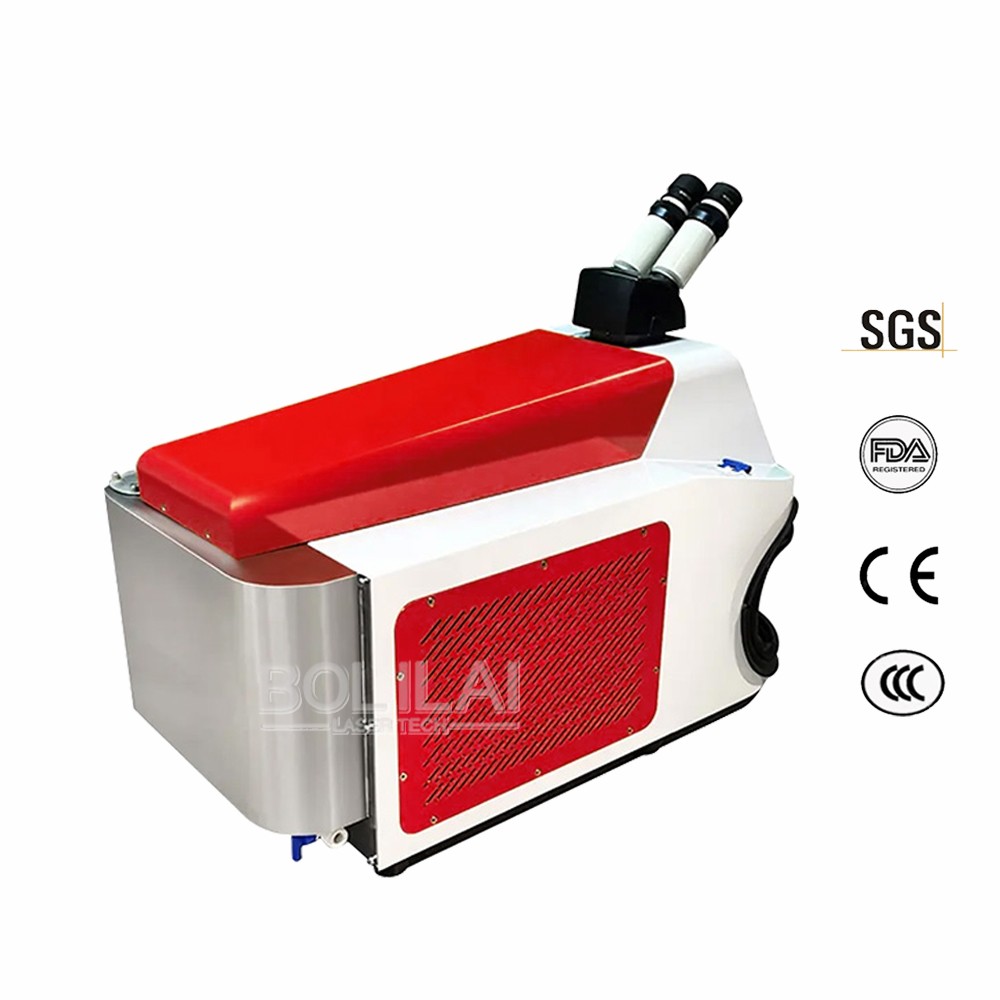

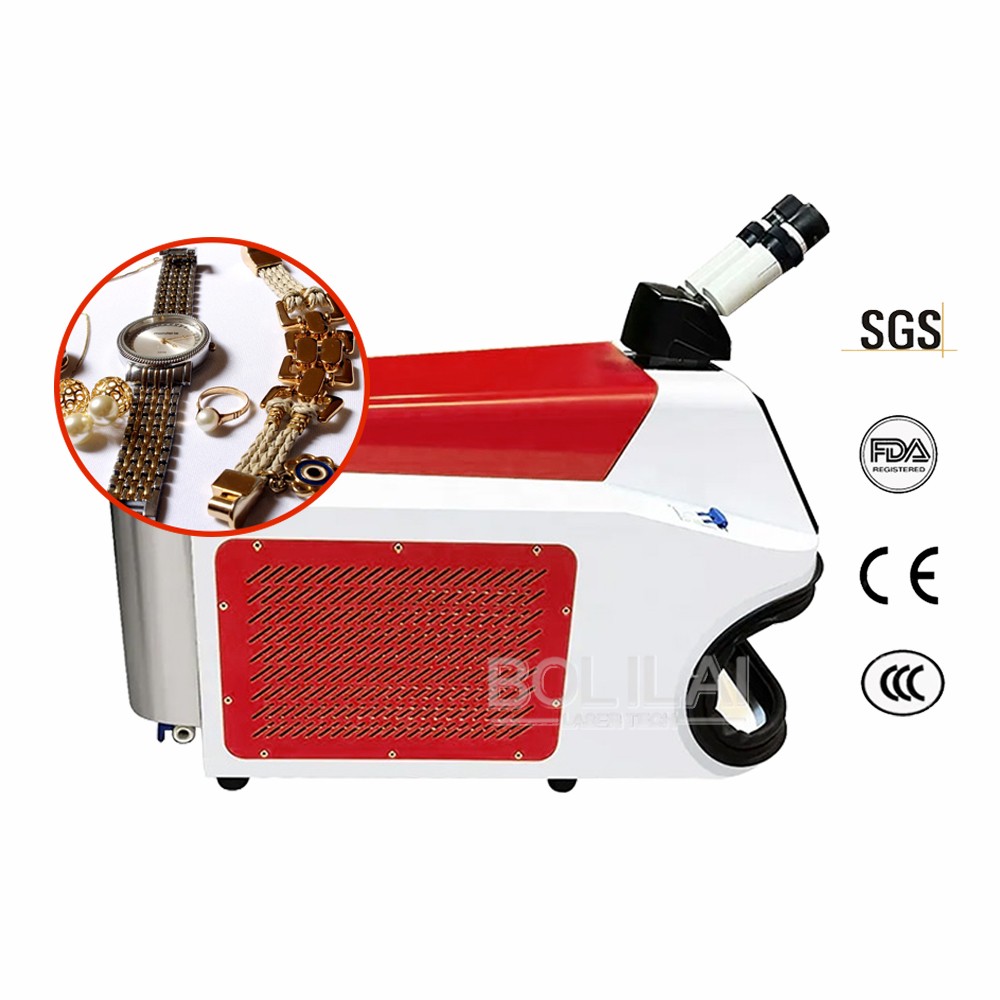

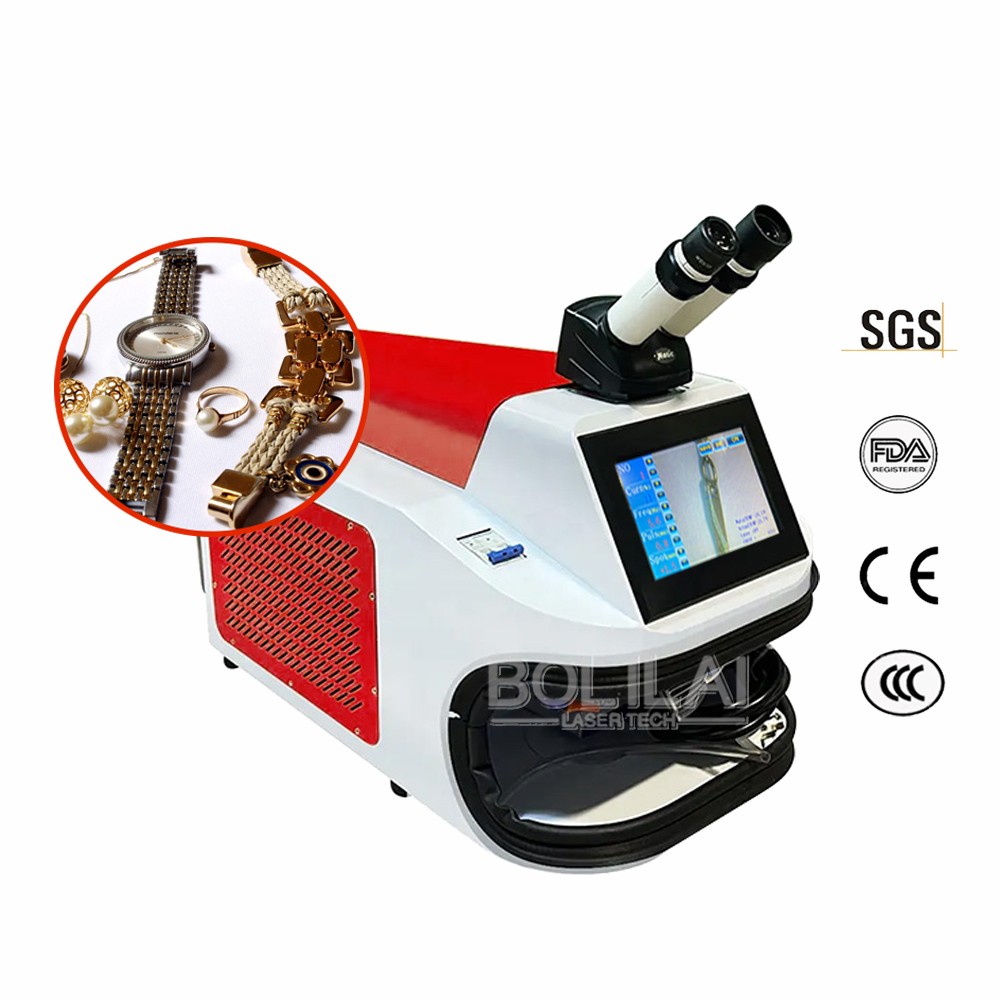

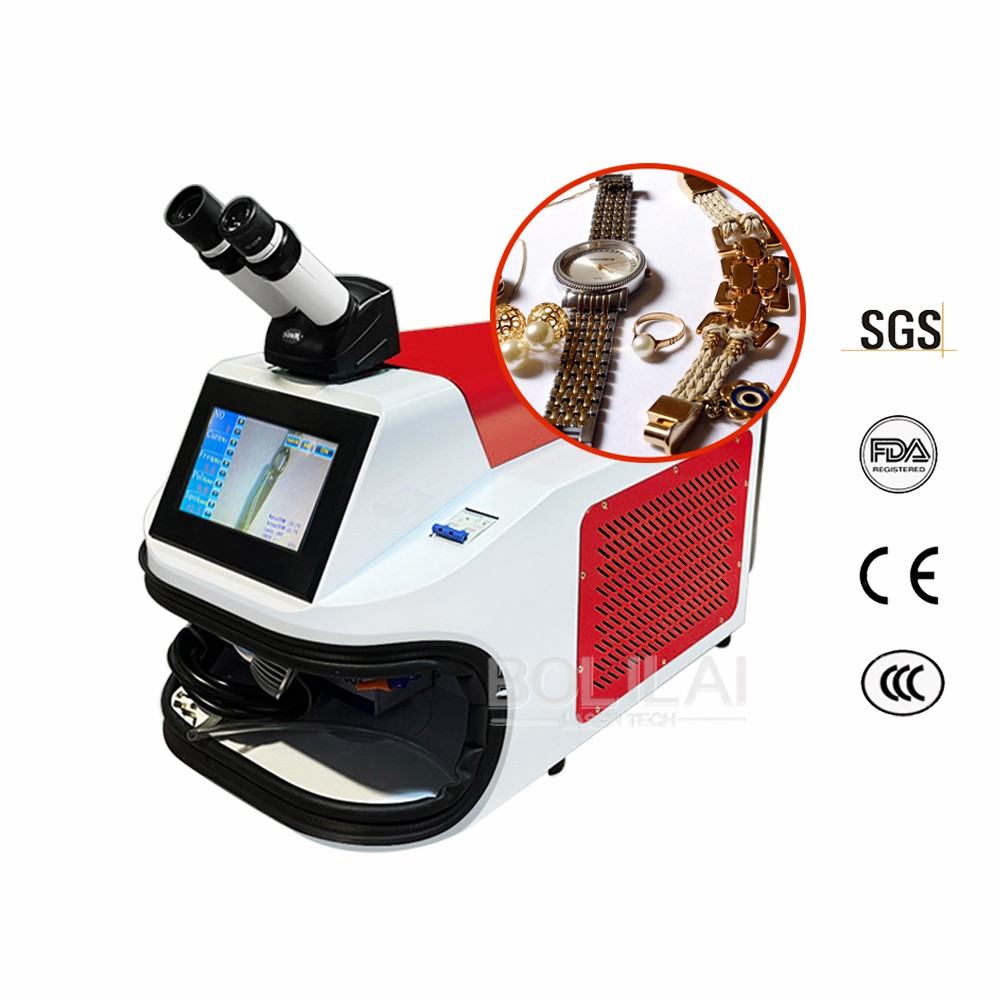

**Jewelry Laser Spot Welding Machine**
**Key Advantages:**
* Enables repeated welding of pure gold and silver without the need for repainting.
* Offers a high depth of focus and sharp definition for precision work.
* Compatible with both CCD camera and microscope viewing systems.
* Features 8 customizable pulse waveforms to optimize welding across different materials.
**Core Features:**
* Adjustable energy, pulse width, frequency, and spot size for versatile welding applications.
* Easy and efficient parameter control via joystick within a sealed working chamber.
* Equipped with an advanced automatic shading system to protect the operator’s eyes during operation.
* Built for continuous 24-hour use with stable performance and maintenance-free operation for up to 10,000 hours.
* Ergonomic design ensures operator comfort, even during extended working periods.
**Performance Benefits:**
* High welding speed and efficiency
* Deep penetration with minimal deformation
* Small heat-affected zones and high-quality, clean welds
* Eco-friendly and free from welding pollutants
|
Product name |
Jewelry laser weder machine |
|
Laser source |
Nd: YAG 1064nm |
|
Max laser power |
150W |
|
Frequency range |
1~50Hz |
|
Pulse width range |
1~20ms |
|
Spot size range |
-3mm~3mm |
|
Max energy |
50 Joule |
|
Aiming positioning |
CCD, 10X microscope |
|
Positioning accuracy |
+/-0.02mm |
|
Input voltage |
220V 50/60Hz |
|
Machine size |
680*360*363mm |
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?We will help you choose the suitable machine and share you our best solution;
You can share us what kind of material you're gonna mark/ engrave on.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We can send operation video and manual for the machine. Our engineer will do training online.
If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
We provide a full two-year machine warranty.
Any problems happened under warranty, components will be provided for replacement or repairement free of charge.
If over the warranty, we still provide excellent service.
