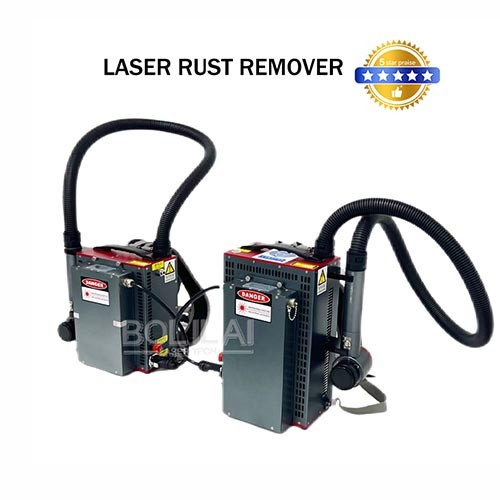

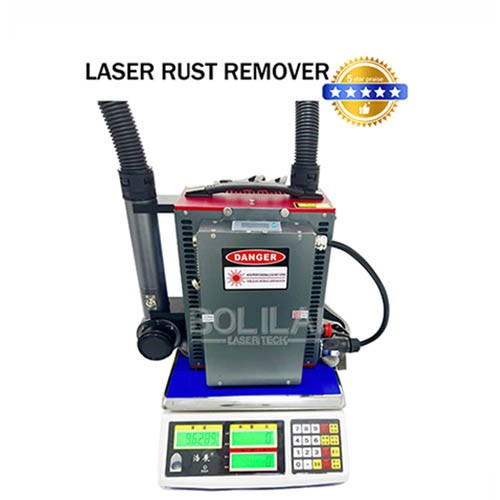

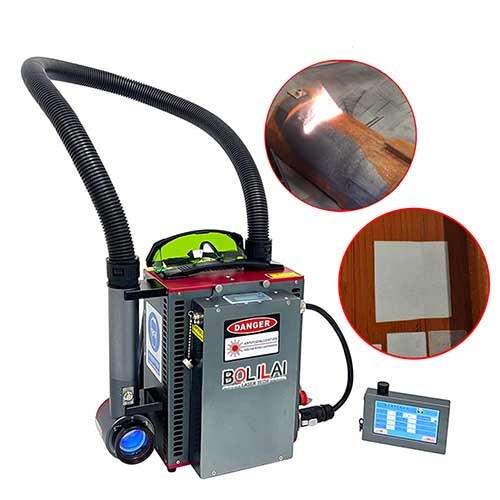

Backpack Pulse 50w Fiber Laser Rust Removal Cleaning Machine
| Operating environment | |
| Model Name | BL-LC50 |
| Supply voltage | Single phase220V±10%、50/60Hz AC |
| Power consumption | ＜400W |
| Working environment temperature | 5℃～40℃ |
| Working environment humidity | ≤80% |
| Optical parameters | |
| Average laser power | ≥50W |
| Power instability | ＜5% |
| Laser Working Mode | Pulse |
| Pulse width | 10-500ns |
| Maximum monopulse energy | 1.5mJ |
| Power regulation range（%） | 0-100( Gradient Adjustable) |
| Repeat frequency（kHz） | 1-3000（Gradient Adjustable） |
| Fiber length | 3m |
| Cooling mode | Air cooling |
| Cleaning Head Parameters | |
| Scan range (length * width) |
0mm~100 mm, continuously adjustable; supporting 8 scanning modes |
| Scanning frequency | The maximum is not less than 300Hz |
| Field mirror focal length（mm） | 160mm（ Optional 210mm/254mm/330mm/420mm） |
| Depth of focus | About 5 mm |
| Mechanical parameters | |
| Machine size（Length,width and height） | About500mm×240mm×510mm |
| Machine Weight | About 25Kg |
| Cleaning head weight | ＜0.75Kg |
| Mode of operation | Handheld/automated |
1.Non-contact cleaning without damaging the matrix of the parts;
2.Accurate cleaning, can achieve precise position, accurate size selective cleaning;
3.Do not need any chemical cleaning liquid, no consumables, safety and environmental protection;
4.Simple operation, hand-held or with the manipulator to achieve automatic cleaning;
5.Ergonomics design, operating labor intensity greatly reduced;
6.Trolley design, with its own moving wheel, easy to move;
7.High cleaning efficiency, save time;
8.Laser cleaning system is stable with easy maintenance.
